Selenium Framework

  1. Folder Structure.
  2. Creating the folder structure through eclipse.
  3. Creating Package and Java file.
  4. Create Build.xml file
  5. Create Testing.xml file.
  6. Set Build.Properties value
  7. Run the Test Suite.
  8. How it works?
1.    Folder Structure.

     The folder structure or contents of this framework is as follows:
  • The config directory contains testng.xml file, and is a place holder for configuration files.
  • The lib directory contains required jar files, and is a place holder for other library jars/zips.
  • The test directory contains test java files and is a place holder for other test files. Once the tests are run, build and test-output directories will be created.Test-output directory contains result files, and is generated by TestNG.
  • The is properties file.
  • The build.xml file is taking care of starting selenium server, compiling testcases and running the testsuite.
  • The build directory contains compiled classes, and is a volatile directory that is deleted by the target clean in build.xml file.
2. Creating the folder structure through eclipse.
     1.  Create a Java Project by name “SeleniumTestFramework” (Ex: New>Java Project)

     2.   Rename the src folder to “test-src”. This folder will contain all the java source file and packages.
     3.   Create a folder “config” (it contains all the configuration for your each test case) and “lib” (Copy all the jar file mentioned below to this folder)

     4.  Create a “Build.xml” file in base directory of the project. (Which is basically ANT file)
     5.  Create a “” file in base directory of the project. (Which contains the global variable declaration required for the test.
     6.  Create “testing.xml” file under “config” folder.(Which is basically a TestNG file).

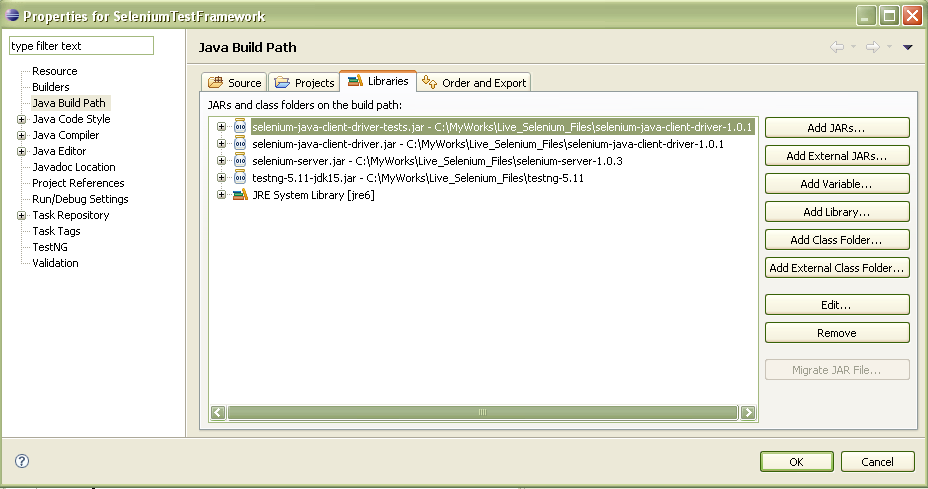

     7.  Right Click on Project “SeleniumTestFramework” and select “Build Path>Configure Build Path”.Add jar file to the project as specified in below snapshot.

3. Creating Package and Java file.

1. Right Click on “Test-src” folder and select “New>Package”

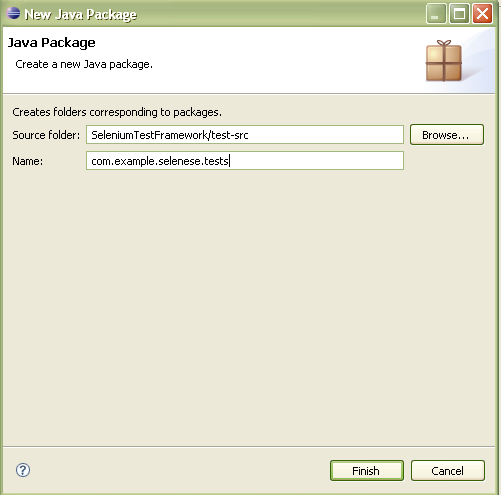

2. Create a package by name “com.example.selenese.tests” as shown below:

3. Create a java file: Right click on Package created above and select “New>Class”.
4. Create a class by name “Demo” as shown below:

5. Replace the content of with below content.

4. Create Build.xml file
•    Replace the content of build.xml file with below content

NOTE: For more info please visit

5.    Create Testing.xml file.

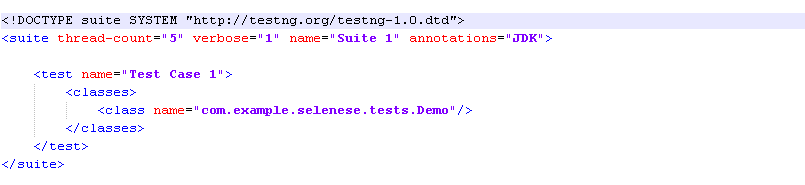

•    Replace the content of testing.xml file with below content

NOTE: For more info please visit

6.    Set Build.Properties value

7.    Run the test suite.
•    Run the Project using ANT. OR Select Build.xml and Run this file using ANT Build
•    Eclipse will take care of starting selenium server and running each test case mentioned in testing.xml.
•    The Report will be generated in Project Base directory with name “test-output” as shown below.

8. How it works?
As a test suite starts in your favorite language, the following happens:
  1. The client/driver establishes a connection with the selenium-server.
  2. Selenium-Server launches a browser (or reuses an old one) with a URL that will load Selenium core web page.
  3. Selenium-Core gets the first instruction from the client/driver (via the HTTP Proxy built into the Selenium-RC Server).
  4. Selenim-Core acts on that first instruction, typically opening a page of the AUT.
  5. The web server is asked for that page, and it renders in the frame/window reserved for it.
